A Detailed Guide On ABS Injection Molding

ABS injection molding process is a procedure where molten ABS plastic is injected into a mold at high pressures and temperatures. The process helps replicate multiple types of prototype designs for many industrial applications because ABS plastic is an engineering-grade plastic. It’s machined by industries including automotive, consumer products, and construction, to name a few.

This article comprehends ABS molding from definition to applications, processes, and techniques. So read on!

ABS Injection Molding Overview:

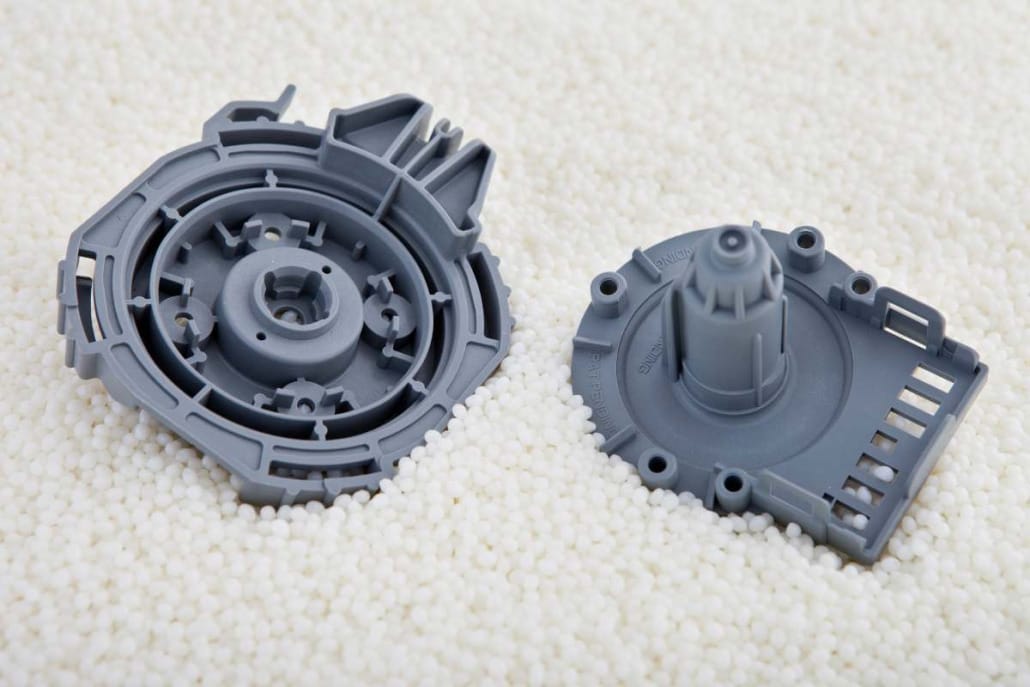

ABS (Acrylonitrile Butadiene Styrene) injection molding is a popular technique for the production of ABS plastic products with exact specifications. From engineering terms, ABS is a rigid and durable thermoplastic polymer, famous for its ease of manufacturing or fabrication. The molding techniques are applied to inject the molten abs into the mold die, after which the part cools down and is then ejected upon solidification. This method is fastidious and efficient and can produce a wide variety of ABS products, which makes it a cheap solution for bulk volumes.

How to precisely machine ABS?

The ABS plastic molding process is quite similar to the process of injection molding, like many other thermoplastic molding techniques. It begins by supplying ABS resin plastic pellets into a hopper, where these are subsequently melted and injected into a mold under highly controlled pressure up to 700–1400 bar. Then cooling and hardening phases stratify, and the injection-molded part is ejected, and the cycle starts again in a repetitive manner to form multiple parts from a single tool die.

ABS plastic injection molding is famous for its simplicity and efficiency; hence, it’s notably considered an ideal process for large-scale batch parts to effectively bring to market with minimal turnaround. When it comes to ABS, it has good dimensional stability and post-molding workability, which means it’s relatively easy to machine, drill, bore, and mill it to the needed parts’ specifications.

Why ABS Molding is The Right Choice?

ABS is a material of choice for injection molding because of its advantageous properties. These are the features that make its use indispensable; for instance, a good material has high strength, a low melting point, recyclability, and excellent resistance to chemicals and heat. Its plasticity is a main reason for its easy processing and shaping into several shapes and sizes. Thus, ABS is widely applicable in fields that require strength and durable components, like interior automotive parts, household appliances, tools, and medical devices. Its versatility and reliability answer the question, ‘Why is ABS the best option for injection molding projects?”.

Characteristics of ABS Plastic

Let’s discuss its peculiar characteristics:

• Chemical formula: The ABS plastic is made up of (C8H8) x· (C4H6) y· (C3H3N) z.
• Heat and Chemical Resistance: ABS are not easily affected by heat or chemical reactions.
• Impact, abrasion, and stain resistance: ABS is famous for its durability, resistance to abrasion and staining, and ability to withstand impact.
• Typical temperature range: The normal working temperature for ABS is 204–238 °C.
• Liquefying temperature: The ABS has a liquefying temperature of 105 °C.
• Tensile strength: The abs have a tensile strength of 46 MPa (6600 PSI).
• Specific gravity: The particular gravity of ABS is 1.06.
• Shrink Rate: The abs have a shrink rate of 0.5-0.7%.

Advantages of ABS Injection Molding

Here are the key benefits of abs molding:

1. Energy Efficiency:

The equipment used in ABS molding delivers efficient performance during thermoplastic processing. The strength and dynamics of their operations guarantee steady and regular production performance by reducing energy demand and the overall cycle times.

2. Versatile Applications:

ABS plastic molding allows for the production of a great number of applications, which can be applied to ABS resins of different sizes with uniform integration capabilities. Thus, the adaptability of the process ensures the production of complicated components for various industrial applications.

3. Accurate Reproducibility:

It’s notably the best choice for the production of detailed and complex feature parts, for instance, interior and exterior parts, which is why it’s superior to other molding processes. Besides, ABS plastics sustain their properties and performance even in extreme temperature situations or conditions. That’s the main reason for their use in aerospace and electronics applications.

Disadvantages of ABS Injection Molding

Despite benefits, ABS plastic machining entails limitations too; let’s discuss each in brief details.

1. Poor UV resistance:

ABS plastic has poor resistance to ultraviolet (UV) rays from the sun; hence, it degrades when it’s exposed for a long time. In order to mitigate this issue, the ABS components are usually covered with UV-resistant materials to make them more protected and sustainable.

2. High Smoke Evolution:

Although abs are normally considered non-toxic thermoplastics to humans, Because it can produce harmful smoke during the injection molding process. Thus, it can affect the health of personnel in charge designated for molding abs. Strong safety protocols are needed for its operators, along with technical expertise.

3. Poor fatigue resistance:

The ABS plastic may not be good for applications that require high stress or strain because of its limited fatigue resistance. The prolonged exposure of ABS to stressors usually results in degradation and decreased durability of the part or product over time. If you need more high-stress, then PC ABS injection molding will be a better solution.

Considerations in the ABS Plastic Injection Molding Process

There are some key aspects to consider for machining ABS. These necessary factors include;

1. ABS Plastic Parts Design:

Before you initiate the ABS plastic injection molding process, you have to consider the technicalities of the parts’ design. Try to split designs to uniform wall thickness to avoid stress, with a 25% variation of the wall thickness as per a rule of thumb. The inclusion of more ribs or radii can increase strength and avoid snapping issues.

2. Wall Thickness and Radius Ratio:

The ratio of radius to wall thickness should not be less than 0.3.  Because the larger radii will be the stress buster. Nevertheless, avoid considering small radii because they can cause shrinkage problems in products during the injection molding process. The design of ABS plastic parts should be kept in balance so that they are both strong and don’t shrink under strain or stress.

Precautions in the ABS Plastic Injection Molding Process:

For optimal prototype development projects, from small to large-scale batches, here are a few considerations to count on.

1. Drying ABS Material Before Processing:

ABS plastic is very moisture-absorbing. Problems during processing are likely to occur. The material should be completely dried initially before injection molding to prevent issues related to the increased cost of the project, the extension in machining time, and the production of parts with a cloudy or rougher surface finish. Although ABS resins may absorb moisture from the atmosphere naturally in a range of 0.4% to 2%, Therefore, it’s important to lower the moisture content to 0.5% or less than the maximum limit to avoid any problems. This way, the process of drying is usually carried out at temperatures of 80–95 °C for around 3–4 hours.

2. Molding Temperature Control:

Molding temperature control is crucial in ABS injection molding to avoid thermal decomposition. These issues lead to the formation of brown granules on the molded parts. The process of ABS plastic overheating can cause chemical bond breakage. Although high temperatures are essential for glossy and matte abs parts, it’s important not to damage the material. The ideal temperature range for ABS injection molding is between 180 and 230 °C, and shorter exposure times at higher temperatures are recommended to avoid degradation over time.

3. Injection Pressure and Speed in ABS Injection Molding:

ABS plastic has a higher injection pressure than other materials, for example, PP injection molding. The reason isthat it iss highly viscous plastic. Although that’s not required for products that are simple or thick, excessive pressure can lead to severe consequences, like the parts sticking together. In addition, the increased friction ultimately raises production costs. On the other hand, low pressure can cause mold shrinkage and components of inferior quality.

The injection speed is another key factor in the production of high-quality final products. Too high a speed can lead to plastic burning or thermal decomposition. Besides this, there are problems of poor glossiness, weld lines, and discoloration. Also, the lack of mold filling can be seen at slow injection speeds. The injection speed is a critical aspect of material processing for ensuring efficiency and minimal waste of material. The ABS plastic usually needs a smaller shot size than other plastics, which means that the material usage is reduced but the molding techniques are not affected.

Applications of ABS Plastic Molding:

ABS plastic is widely adopted by many industries because of its versatility and advantages. Some key applications of ABS plastic molding include:Some key applications of ABS plastic molding include:

1. Automotive Industry:

ABS plastic is widely used in the automotive industry for producing lightweight components, which are substitutes for metals like aluminum. A few examples include door liners, instrument panels, dashboard components, pillar trim, handles, and seat belt parts.

2. Commercial Applications:

ABS plastic is a popular material for its use in many household products. These are examples of the products that are consumed in daily life: refrigerator liners, vacuum cleaners, control panels, and food processors.

3. Electrical Industry:

The ABS-molded products are used in the electrical industry in the production of electronic enclosures and computer keyboards.

4. Building and Construction Industry:

ABS plastic is notably one of the best materials in the construction industry for its high impact resistance and the ability to bear chemical and physical changes. For these reasons, its use is usual for pipes and fittings.

Other Aesthetic Applications:

ABS plastic is heavily employed in various other applications for shaping products for manufacturing and musical instruments.

For example, the manufacturing of sports equipment and facilities involves the use of ABS injection molding. Furthermore, medical products such as compressors and nebulizers and disposable syringes or one-use products can also be made from ABS plastic because of its stringent strength.

ABS machining techniques

Here are some key techniques commonly used:Here are some key techniques commonly used:

1. Thin-Walled Parts:

ABS has a higher viscosity, so it requires higher injection pressures for thin-walled parts. Therefore, molds must be made to be able to cope with these high pressures. Usually, steel-made molds are used for fabricating thin-walled products.

2. Large Hollow Parts:

Water-assisted or gas-assisted injection molding is the one that is useful for fabricating large, thin, or hollow parts. The high-pressure water or gas causes the molten or lava plastic to be pressed against the sides of molds. Therefore, it must be ensured that the thickness of the ABS material sheet is uniform and the internal volumes are smooth.

3. Thick-Walled Parts:

The normal injection molding for thick-walled components can cause sink marks on the parts’ surface. The compression injection molding uses a definite quantity of the molten plastic to lower the sink marks and internal stresses. On the other side, thinner or more uniform mold walls can be used to avoid the sink mark problem.

4. Multi-material components:

Techniques like insert molding and overmolding are used for multi-material components. ABS overmolding usually uses highly durable plastics to enhance the functionality of a product or part. For instance, in industrial tooling applications like cordless drills, These methods help replicate ABS parts to be more efficient and effective for design specifications.

Compatible Materials for ABS Molding

Injection ABS molding can be processed with many types of materials, from thermosets to thermoplastics. Among these, thermoplastics use reinforcing additives like glass or carbon fiber fillers. Besides, it’s also possible to inject exotic metals like aluminum, titanium, and zinc, but this usually involves the combination of the metals with a plastic filler material to make the flow uniform through the mold.

Summary

To sum up, ABS plastic molding is a well-known technique that heavily uses a bunch of materials for injection molding. Its heat-resistant feature and durability make it extremely useful for various industrial parts fabrication. The ABS plastic injection molding process is a cheap way of manufacturing various automobile and aircraft parts for manufacturing projects. If you are in need of a dependable and cost-efficient solution for plastic injection molding, ABS plastic molding is a go-to choice.
